Sorta

A simple yet powerful sortable list for React!

• Works automatically either in a vertical or horizontal direction with rtl support.
• Doesn't affect the DOM tree by itself: no styles are applied, and no elements are created or copied:
  • Provides {x: number; y: number}property for you to decide how to apply styles: transform, margin or left & top.
  • Operates within a single container that keeps you safe with CSS cascade dependencies (.container > .item {...}) that obviously doesn't work with cloning and appending element to document.body.
• Supports scrollable containers and virtualized lists.

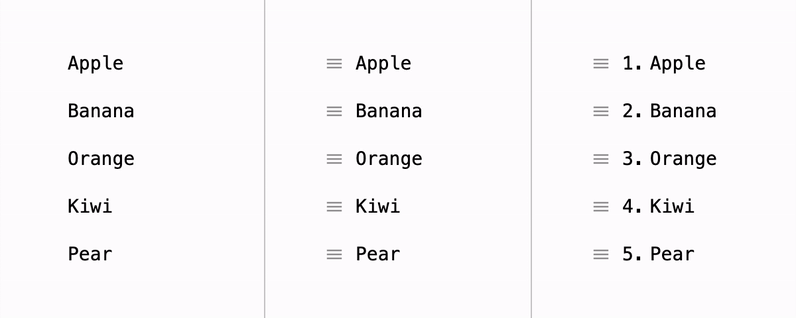

See Demo

Basic usage

npm install react-sorta

yarn add react-sorta

Container

import { useCallback, useState } from "react";
import { Sorta, SortaEvent } from "react-sorta";

const [ list, setList ] = useState([ "Apple", "Banana", "Orange", "Kiwi", "Pear" ])

const onSortEnd = useCallback(({ order, from, to }: SortaEvent) => {
  /**
   order: provides indices of current list in new order
   from: source index
   to: destination index

   EXAMPLE: Move second element to 4th position:
   {
     order: [0,2,3,1,4],
     from: 1,
     to: 3
   }
   **/
  setList(current => order.map(index => current[index]))
}, []);

return <Sorta onSortEnd={onSortEnd}>
  {list.map((label, index) => (
    <Item index={index} key={label}>{label}</Item>
  ))}
</Sorta>

Item

To use sorting item you need only two params:

• ref passed to HTML element to initialize element bounds.
• onSortStart event handler passed as onMouseDown/onPointerDown event to start dragging.
• translate prop to get x,y shift for each element

All three props can be passed to different elements, so you can use one element as a sorting handle, get bounds from another, and move only the third element.

Using with HOC

import { forwardRef, PropsWithChildren } from "react";
import { sortaElement, SortaElementProps } from "react-sorta";

const Item = sortaElement(forwardRef((props: PropsWithChildren<SortaElementProps>, ref) => {
  const { onSortStart, translate: {x, y} } = props;
  return (
    <div
      ref={ref}
      onMouseDown={onSortStart}
      style={{transfrom: `translate(${x}px, ${y}px)`}}
    >
      {props.children}
    </div>
  )
}));

Using with hook

import { useSorta } from "react-sorta";

const Item = (props: PropsWithChildren<{ index: number }>) => {
  const { ref, onSortStart, translate } = useSorta(props.index);
  /*...*/
};

Scroll Container

It's easy to use Sorta within the scrolling container. Just pass RefObject<HTMLElement> to containerRef prop.

const containerRef = useRef<HTMLDivElement | null>(null);

return <div ref={containerRef} style={{overflow: "auto"}}>
  <Sorta onSortEnd={onSortEnd} containerRef={containerRef}>
    {list.map((label, index) => (
      <Item index={index} key={label}>{label}</Item>
    ))}
  </Sorta>
</div>

Note, that containerRef can be used not only for scrolling purposes but to prevent items to be dragged outside the parent container.

Virtualization

Using Sorta with virtualization lists is a bit tricky since the virtualizer skips elements that are out of bounds so with default usage dragging element will eventually disappear on scrolling. To handle that use onItemUnmount prop that passes translate and copy of the dragging element you can append to the container if needed.

Also, you need to provide elements count with count prop

Example with react-window virtualizer:

import { FixedSizeList } from "react-window";
import { Sorta } from "react-sorta";

const containerRef = useRef<HTMLDivElement | null>(null);
const contentRef = useRef<HTMLDivElement | null>(null);

<Sorta
  onSortEnd={setList}
  count={list.length}
  containerRef={containerRef}
  onItemUnmount={(element: HTMLElement, translate: {x: number; y: number}) => {
    element.style.transform = `translate(0, ${translate.y}px)`;
    contentRef.current?.appendChild(element);
  }}>
  <FixedSizeList
    height={300}
    width={200}
    itemSize={50}
    itemCount={list.length}
    outerRef={containerRef}
    innerRef={contentRef}>
    {({ index, style }) => (
      <Item key={list[index]} index={index} style={style}>
        {list[index]}
      </Item>
    )}
  </FixedSizeList>
</Sorta>

Types

SortaProps

Props of Sorta container

Property	Description	Type
onSortEnd	Event fired after finishing sorting. Provides ordered indices of the current list, source and destination indices.	({ order: number[], from: number; to: number }) => void;	Required
containerRef	Provides items container. Used to get bounding rect and invoke the '.scrollTo()' method when dragging item.	RefObject<HTMLElement>	Optional
count	Provides the number of elements in the list in case it's impossible to get this number from children, e.g., using virtualization.	number	Optional
onItemUnmount	Provides callback if dragging element was unmounted, e.g. in virtualized lists, to manually append it container	(element: HTMLElement, translate: { x: number, y: number }) => void	Optional

SortaElementProps

Props of sorting element

Property	Description	Type
index	Index of the current element	number
ref	Used to identify bounds of sorting elements.	React.ForwardedRef<HTMLElement>
onSortStart	Provides event handler to pass on element as onMouseDown/onPointerDown event	React.MouseEventHandler
translate	Provides x,y shift of current element.	{ x: number; y: number }
isDragging	Indicates if current element is currently dragging.	boolean
isSortable	Indicates if elements are currently sorting except for dragging element.	boolean
